What Is a Master Filter and Do You Really Need One?

If you've read about water filtration for coffee machines, restaurants, or commercial kitchens, you've probably come across the term "master filter" — often mentioned as a recommended upstream addition. But what exactly is it, and is it something your property actually needs?

Here's a clear, practical breakdown.

What Is a Master Filter?

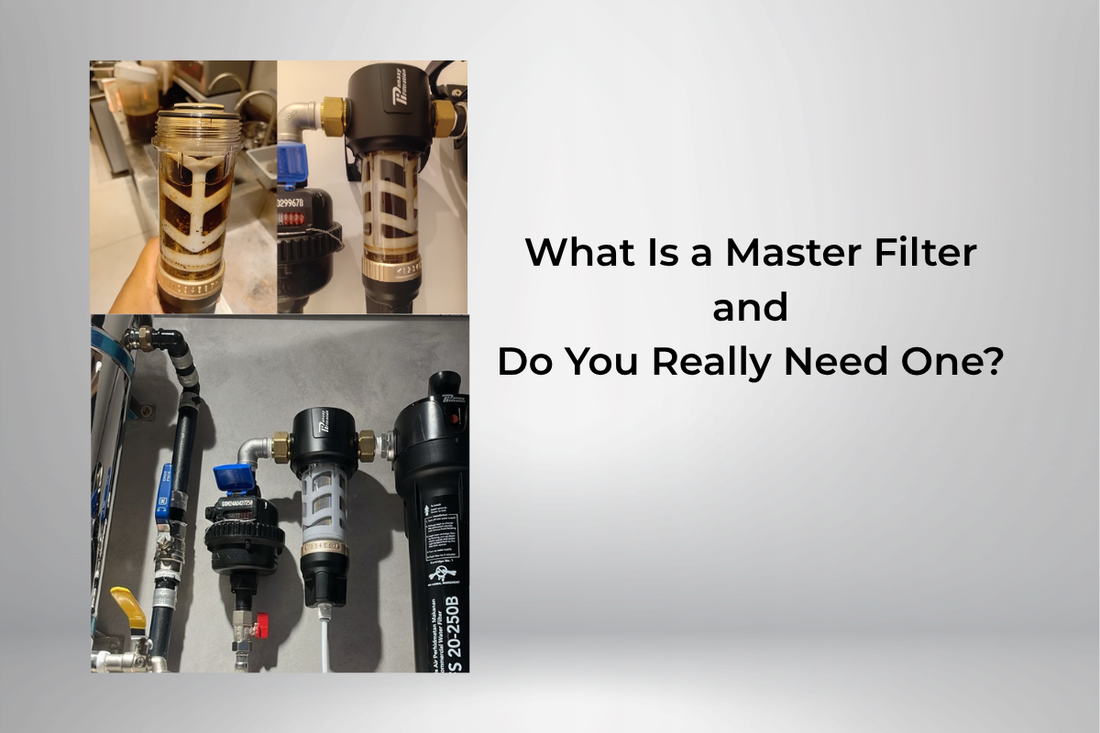

A master filter (sometimes called a whole-building or point-of-entry filter) is installed at the main water inlet of a property — before water is distributed to individual taps, appliances, or point-of-use filters. Its job is to handle bulk filtration of the entire incoming water supply, rather than filtering water at just one tap or appliance.

This is different from point-of-use filters, which are installed at a specific location — like under a kitchen sink, attached to a coffee machine, or built into a drinking water dispenser — and only treat the water that passes through that one connection.

Why Master Filters Matter

Think of a master filter as the first line of defense. If your incoming water carries rust, sediment, dirt, or other particles — common in older buildings or areas with inconsistent municipal water treatment — a master filter removes the bulk of this load before it ever reaches downstream equipment.

Without one, all of that filtration burden falls on individual point-of-use filters, which:

• Clog and lose flow rate much faster than expected
• Require far more frequent (and expensive) cartridge replacement
• May let excess particles through faster than their rated capacity, since they weren't designed to handle heavy sediment loads on their own

How the Panaxy PVDF Plus Master Filtration System Works

The Panaxy PVDF Plus is an industrial-grade master filtration system built around a PVDF (Polyvinylidene Fluoride+) membrane — a filtration media known for durability and very fine filtration capability.

Core specifications:

• Filtration media: PVDF Plus (double layer + lining)
• Micron rating: 0.01 μm — fine enough to capture microscopic particles, well beyond what typical sediment filters achieve
• Membrane lifespan: 2 years
• Filters and reduces: Particles, dirt, rust, and cysts
• Halal certified (Cert No. 6 047-05/2023)

Built to Handle Genuinely Poor Incoming Water

One of the standout aspects of the PVDF Plus system is its rated performance range:

• Incoming water turbidity allowance: up to 1,000 NTU — meaning it's designed to accept water that's significantly turbid or cloudy, not just lightly hazy tap water
• Filtered water turbidity output: ≤0.1 NTU — an extremely clear result on the other end

This wide gap between what goes in and what comes out is exactly what makes it suitable as a master filter for buildings with genuinely challenging incoming water conditions.

Washable Membrane, Not Disposable Cartridges

Rather than replacing a cartridge outright, the PVDF Plus uses a membrane that's removed and washed as part of routine maintenance. How often depends on incoming water quality and usage volume, and varies by model size:

Larger models are designed to handle greater water volume between washes — an important factor when choosing the right size for a whole building versus a single point of use.

Technical Specifications

• Material: PVDF+ Fiber
• Structure: PP head & filter housing + PVDF+
• Operating temperature: 5–45°C
• Incoming turbidity allowance: 1,000 NTU
• Filtered water turbidity: ≤0.1 NTU

Do You Actually Need One?

A master filter is worth considering if:

• Your building is older, or you suspect aging or corroded pipework
• You've noticed point-of-use filters (kitchen, coffee machine, drinking water) clogging faster than expected
• You operate a restaurant, café, or commercial kitchen where consistent water quality and Halal-certified compliance matter
• Your local water supply has a history of turbidity, sediment, or inconsistent treatment

If none of these apply and your point-of-use filters are lasting their expected lifespan without issue, a master filter may be a lower priority — but for properties with any of the above signs, it's typically the most cost-effective long-term fix.

Final Thoughts

A master filter like the Panaxy PVDF Plus isn't a replacement for your coffee machine filter or kitchen tap filter — it works alongside them, tackling the bulk of incoming particles, rust, and sediment before they reach your point-of-use equipment. For buildings with genuinely poor incoming water, it's often the single most effective upgrade you can make.

Find the right PTS model size for your property at panaxyfiltration.com.

---

FAQ

Is a master filter the same as a point-of-use filter?

No. A master filter treats all incoming water at the building's main entry point, while a point-of-use filter treats water at a single tap or appliance only.

How long does the PVDF Plus membrane last?

It's rated for approximately 2 years, though actual lifespan depends on incoming water quality and usage.

Can I install a master filter myself?

Sizing and installation depend on your building's water demand and incoming water conditions, so it's best to consult with a filtration specialist to select the correct PTS model.
