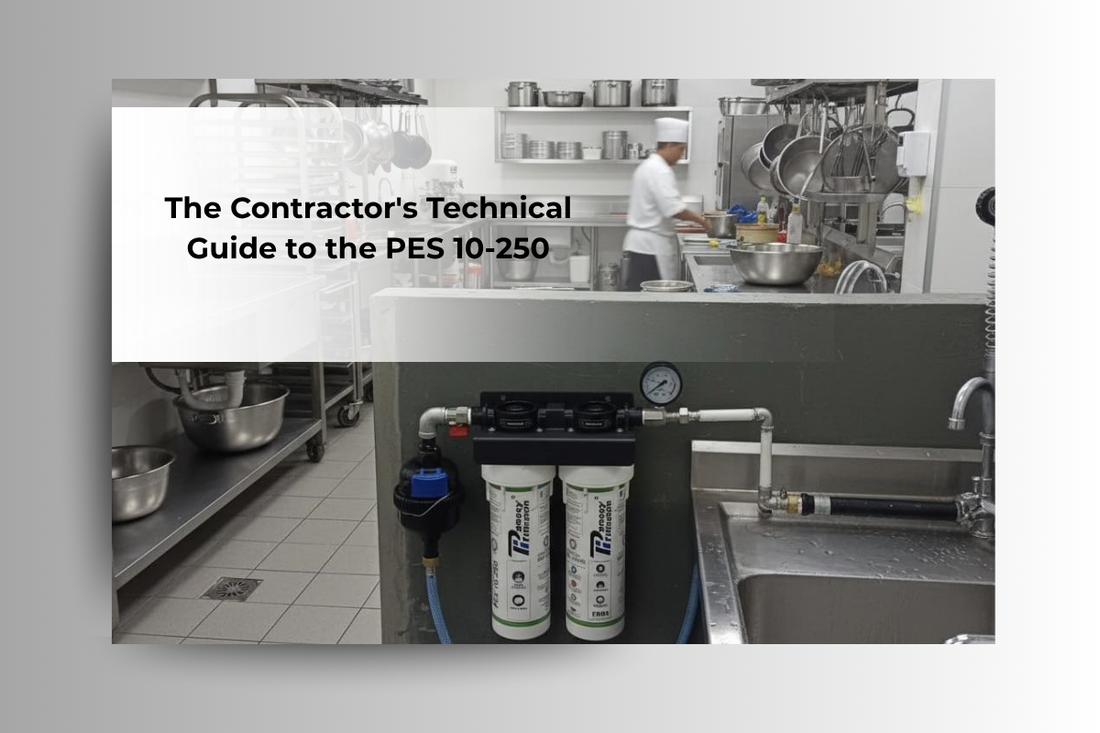

The Contractor's Technical Guide to the PES 10-250

The Contractor's Technical Guide to the PES 10-250

The Engineering Reality of Commercial Ice Production

When mechanical contractors spec water systems for a new commercial kitchen layout, the ice machine is often treated as an afterthought. This is a costly mistake. If a venue intends to run an ice maker producing 100 to 120kg of ice per day, a low-capacity domestic or office-grade inline filter will choke within weeks.

The primary operational pain point for contractors is balancing high-volume contaminant reduction with stable hydraulic pressure. If a water filter restricts flow to protect its carbon matrix, the ice machine's water reservoir refills too slowly. This triggers short-cycling, hollow ice cubes, and eventual system error codes that shut down the entire beverage line.

The Panaxy Equipment Series (PES 10-250) was engineered precisely to eliminate this structural friction point.

PES 10-250 Technical Specifications Teardown

For professional plumbing contractors and mechanical engineers, the data speaks for itself. The PES 10-250 handles the specific water physics required by industrial-grade kitchen machinery:

  • Micron Rating: 5 Micron. This is the ideal threshold for heavy-duty appliances. It traps physical macro-contaminants without creating excessive backpressure that ruins flow rates.

  • Flow Rate Efficiency: 3.8 Liters Per Minute (L/M). This ensures that high-volume ice makers and commercial combi ovens refill within their tightly calibrated internal timing parameters.

  • Total Lifespan Capacity: 45,000 Liters. Built for industrial durability, it allows project managers to establish predictable, cost-effective preventative maintenance cycles.

The Multi-Stage Maintenance Formula

Contractors must look at the incoming water pipeline infrastructure before finalizing their service contracts. The operational wear on a PES 10-250 cartridge setup follows a strict mathematical dependency based on the building’s plumbing architecture:

[ Incoming City Water ] ──> (No Master Filter) ──> Cartridge 1: Replace Monthly
[ Incoming City Water ] ──> (With PVDF Plus Master) ──> Cartridge 1: Replace Every 2-3 Months

  1. The Sediment Defense Line (Cartridge 1): If a restaurant does not have a primary outdoor master filter at its main water intake, all raw mud, sand, and pipe scale slam directly into the kitchen loop. To keep the flow rate pinned at 3.8 L/M, contractors must replace Cartridge 1 every single month. If a high-quality outdoor system—like the Panaxy PVDF Plus—is installed at the point of entry, this frequency drops dramatically to once every 2 to 3 months. BUT, the real condition still depends on the incoming water quality and water usage.

  2. The Pure Block Phase (Cartridge 2): This stage manages chemical reduction, stripping out chlorine, chloramines, volatile organic compounds (VOCs), and modern "forever chemicals" like PFAS. This stage runs efficiently up to its full 45,000L capacity or a standard 12-month calendar cycle before requiring a swap.

FAQ Section

  • Q: Why choose a 5-micron rating over a 0.5-micron rating for commercial ice makers?

    • A: While 0.5-micron systems (like our Premium Food Series) are incredible for specialty coffee taste profiling, raw ice machines require a highly consistent, fast flow rate. A 5-micron block blocks destructive physical sediment while allowing the water volume to transition fast enough to meet production deadlines.

  • Q: Does the PES 10-250 meet Malaysian Halal audit criteria for processing aids?

    • A: Yes. During a Kini Halal discussion titled "Air nampak bersih, tapi betulkah halal?", JAKIM representatives confirmed that ice machine filters are heavily scrutinized during audits. Panaxy implements dual-audit protocols and provides clean Material Safety Data Sheets (MSDS) proving that no animal-fat lubricants or unverified bone-chars exist anywhere in the assembly.

  • Q: Can this system run inline for combi baking ovens?

    • A: Absolutely. Combi ovens turn water into high-temperature steam. The PES 10-250 completely eliminates the rust flakes and sand particles that foul up fine misting nozzles, preventing localized heating element failure.
